Product Description：

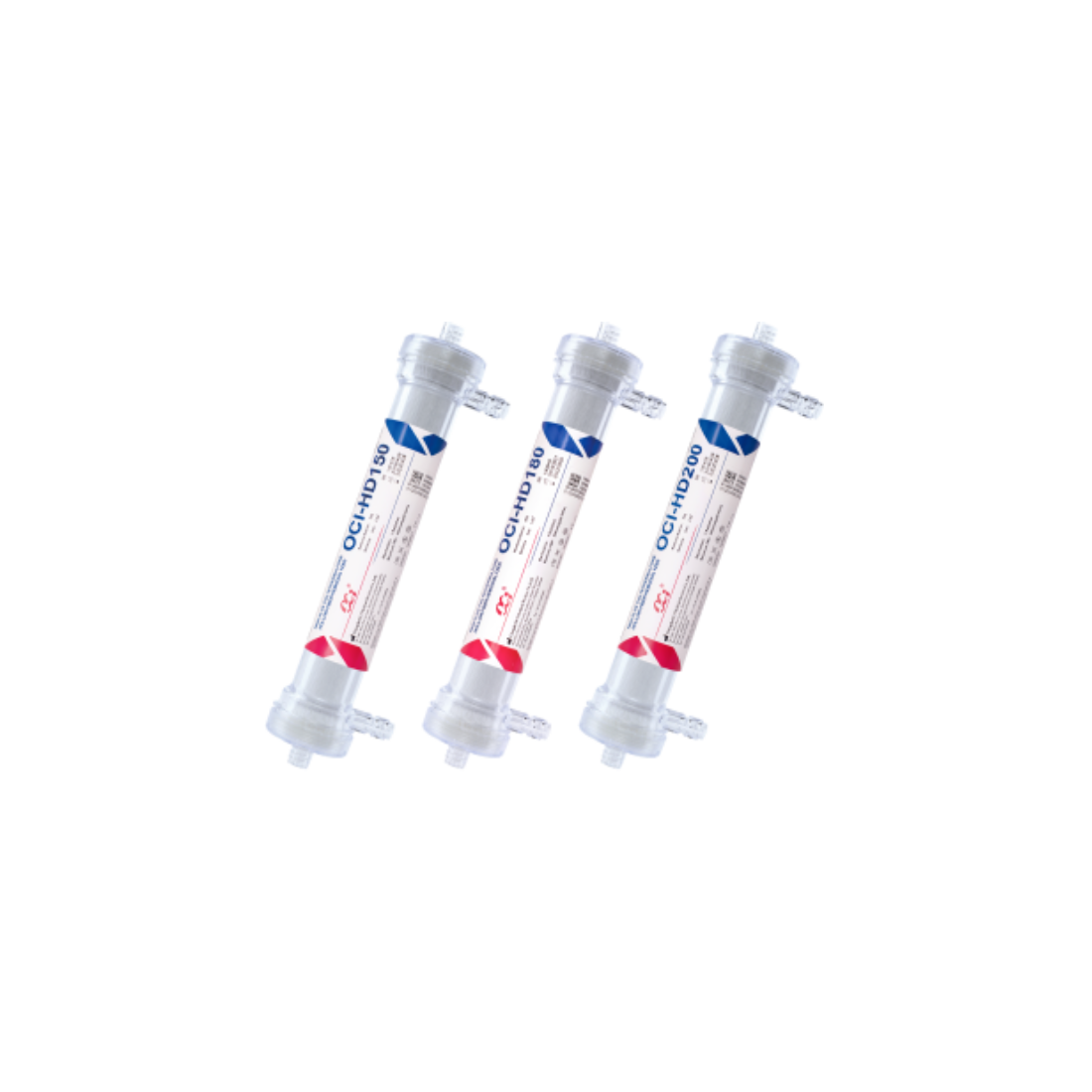

Hemodialyzer PC series available with 3 different surface area : 1.5, 1.8, 2.0 m²
Product Features：
Good Biocompatibility
Good performance of toxins remove
Good clearance rate of middle & large molecule
Low albumin loss
Good β2-microglobulin clearance rate
Optimized membrane wall design, enhanced diffusion effect
Good phosphate clearance rate
Specifications：
Model | OCI-HD150 | OCI-HD180 | OCI-HD200 | |||||||
Ultrafiltration coefficient (mL/h·mmHg) | 47 | 49 | 52 | |||||||
Surface Area (m2) | 1.5 | 1.8 | 2.0 | |||||||
Chamber volume | 90 | 105 | 115 | |||||||
Membrane material | Polyethersulfone (PES) | |||||||||
Housing material | Polycarbonate (PC) | |||||||||
Potting compound | Polyurethane (PU) | |||||||||
Test conditions | QD = 500 (ml/min) | |||||||||
Clearances | QB (ml/min) | 200 | 300 | 400 | 200 | 300 | 400 | 200 | 300 | 400 |
Urea | 190 | 264 | 306 | 193 | 272 | 317 | 195 | 282 | 333 | |
Creatinine | 186 | 241 | 269 | 188 | 248 | 279 | 192 | 260 | 300 | |
Phosphate | 183 | 232 | 256 | 186 | 240 | 267 | 189 | 256 | 289 | |
Vitamin B12 | 152 | 176 | 196 | 157 | 186 | 206 | 160 | 203 | 232 | |
Screening coefficient | Albumin | ≤0.01 | ||||||||
β2-MG | ≤0.01 | |||||||||
Inulin | 0.9±0.1 | |||||||||
Blood flow range (mL/min) | 200-400 | |||||||||
Dialysate flow range (mL/min) | 500-800 | |||||||||
Maximum TMP (kPa/mmHg) | 66.5/500 | |||||||||
Disinfection Method | Irradiation sterilization, Valid for three years | |||||||||
